Which One's the Pencil?

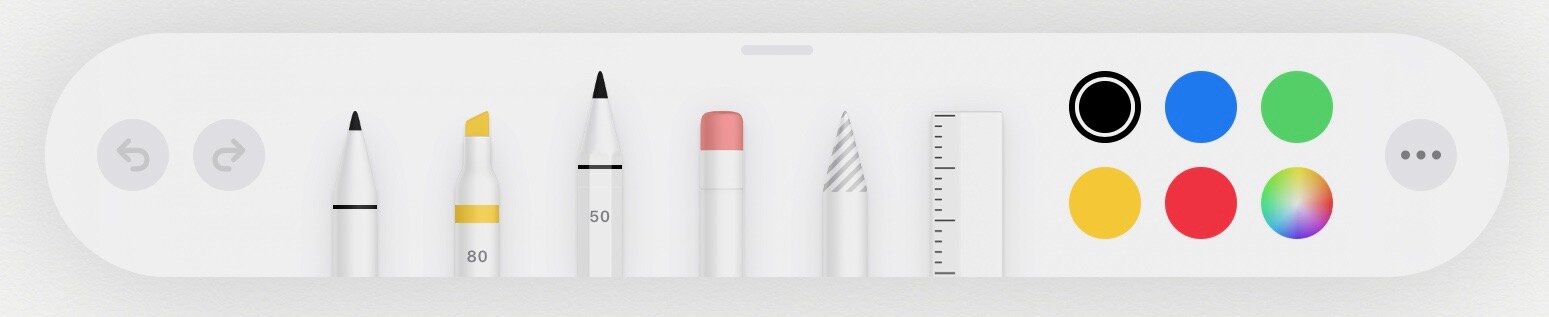

iOS 13 Notes Drawing Palette

iOS 13 Notes Drawing Palette

Skeuomorphism at its worst. I mean, if you’re going to make a hyper-realistic tool palette, at least make the tools look something like they do in the real world. I actually thought they’d removed the pencil tool for the first 15 minutes of using this and I’m still routinely perplexed when selecting a tool. And that lasso tool? Seriously?

To be more specific in my criticism: the visual difference between the pencil tool and the pen tool is far too subtle; none of the real-world cues that communicate “pencil” — a yellow body, a gray tip, wood patterns, an uneven paint edge — are present.

The tool palette from iOS 12 was much clearer, and with only a few simple lines and shapes.

iOS 12 Notes Drawing Palette

iOS 12 Notes Drawing Palette

Video with 16 Channel Audio + QuickTime Pro Laments

Catchy title, I know!

But recently I needed to create a video file with a single, 16-channel audio track for playback on a BlackMagic Hyperdeck 12G. This was not as easy as it sounds — and it doesn't even sound that easy — so I wanted to document my methods. But the process also got me thinking about the imminent demise of one of my favorite video utilities, QuickTime Pro, and I wanted to share my thoughts on that as well.

The Useful Part

I started with a video track and my 16 audio tracks in both DaVinci Resolve and Final Cut Pro X. Both these editors handle the multiple audio tracks with aplomb; editing and playback worked great. Both suites can create a video file with 16 tracks of mono audio, but the Hyperdeck just pukes on that and plays the first two tracks like a stereo pair.

This is not what I want...

This is not what I want...

But when it comes to exporting the final video file, neither edit suite can produce what I need, which is a ProRes video file with a single audio track that has 16 channels.

This is almost what I want!

This is almost what I want!

So this first file with 16 tracks of audio must be converted to one that has our requisite single audio track with 16 embedded channels. I was turned on to one method by this FCP.co Forum post. Their method uses QuickTime Pro to create the final file, but because Apple is phasing out 32-bit apps, Quicktime Pro is not long for this world, so this method is not a good long term solution.

QuickTime Pro, I will miss you deeply.

QuickTime Pro, I will miss you deeply.

Turns out, there's another application that is capable of creating a 16-channel "discrete" audio track, and that is Adobe Media Encoder. I don't love its interface, and I've long loathed Adobe's online licensing scheme, but AME's a pretty darned good encoding application that's far more capable than Apple's Compressor (which, for the record, could also not produce our file).

Adobe Media Encoder to the rescue.

Adobe Media Encoder to the rescue.

So there you have it. Another way to produce a video file with a 16-channel discrete audio track.

UPDATE:
So it turns out there's still one more missing piece of the puzzle. See in the screen shot 3-up where each track says "Discrete?" Yeah, that's actually not quite going to work. Turns out each track must be given a role that describes how it will be decoded. That's easy enough to do in QuickTime Pro. Just click on each channel and assign the role. Then the Hyperdeck will know how to decode the tracks. Two things though: 1) QuickTime Pro doesn't have 16 built-in roles to assign, so some stuff might not get decoded correctly, and 2) I found a much better way.

This is what I want. Roles are key to proper decoding.

This is what I want. Roles are key to proper decoding.



DaVinci Resolve can output exactly the file we need in one pass — no need to do the QuickTime Pro/Adobe Media Encoder steps at all. The trick is to set your Audio output settings at 16 Channels and uncheck "Render one track per channel." This will output a file with all 16 channels in one track and with roles assigned to each channel that the Hyperdeck will be able to correctly decode.

DaVinci Resolve audio output settings.

DaVinci Resolve audio output settings.

I think we have a winner! So, to summarize:

If you want to make a video file with a single 16-channel (15.1) audio track, use DaVinci Resolve to make your edits, then in the Audio tab in the Render section, output with Channels set to 16 and uncheck "Render one track per channel." Resolve will do the right thing. And voila! You're done.

The Ranty Part

Now that that's out of the way, I just want to say, I think it's a shame that Apple has stopped supporting more obscure video practices. Quicktime has long been the gold standard of video platforms, and Apple has continued to do great things with it: the ProRes line of CODECs is truly wonderful. But where Apple was once the leader in amazing — and flexible! — video editing and encoding, they seem to have lost interest.

QuickTime Pro has been around for my entire career as a SysAdmin. It's a $30 app that has helped me more times than I can count. It's truly been an invaluable and peerless tool that will be deeply missed by many. But what's most troubling is that Apple appears disinterested in supplying any sort of replacement; not even their pro apps can do the sort of thing I wanted to do with this file.

Final Cut Pro X will just mix your 16-track audio down to 7.1 surround.

Final Cut Pro X will just mix your 16-track audio down to 7.1 surround.

Is this a weird, unusual thing to need to do? Sure! But it's part of the spec! And it's a part that Apple's 30-year old utility can address, but which none of their pro apps can. Someone at Apple used to think it was important to address the full capabilities of the video file spec, but now they seem only interested in addressing what "most users" want to do with that spec. It blows my mind that Final Cut Pro X can't export a 16-channel audio file, but is happy to help you export your YouTube videos with branded presets.

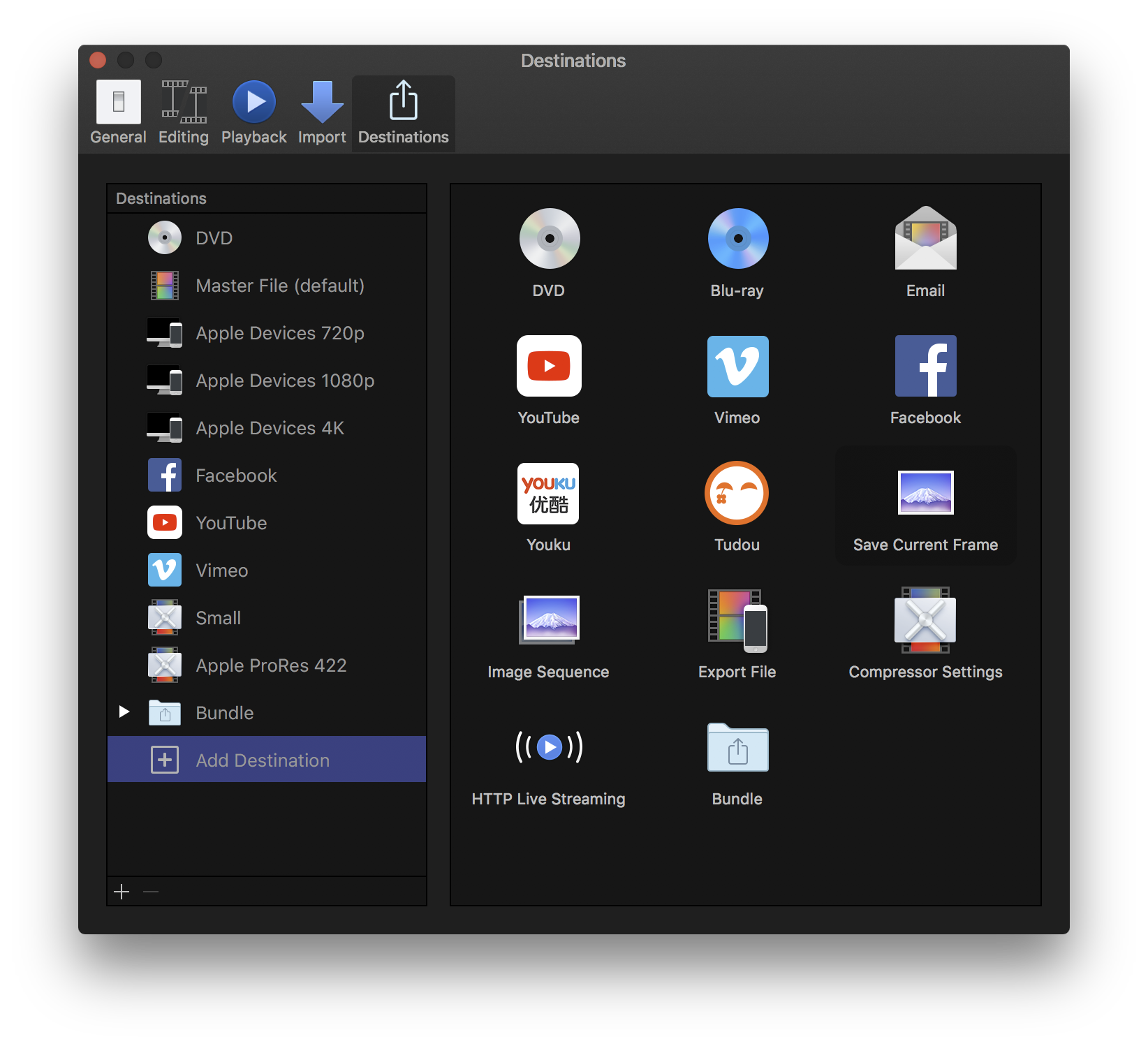

Feh!

Feh!

This strikes me as problematic, and another sure sign that Apple is either out of step with the needs of professional video producers, or simply is no longer interested in them as a customer base. Or maybe we just have vastly different ideas of what constitutes a professional user. And while I'm glad that someone's taken up the mantle, Apple used to do it best, and I'm a little bummed that that's no longer the case, because frankly, no one's doing it as well.

Oh well. I guess that's progress.

I do love my iPad though.

iPad Pro Screen Dimensions

My next computer purchase will be an iPad Pro. I'll use it mostly for drawing. I love my iPad Air 9.7", but for drawing the 12.9" feels like a much better fit. Obviously that's because it's bigger, and it can use the Apple Pencil. But the size is not just bigger, it's also much closer to the size of paper, at least the sort of paper I typically use for drawing. This makes it feel much more natural as a drawing tool, which I confirmed with an in-person test at an Apple Store.

The paper size I usually use for drawing is 9"x12". The body of the iPad Pro 12.9 measures 8.69"x12.04". This is very close to my paper size. The screen, measured diagonally, is 12.9". But finding the actual screen dimensions — in inches — has been nigh impossible, so I thought I'd note it here and save future Googlers the hassle of figuring it out.

And so: The screen width and height of the iPad Pro 12.9's screen is 7.76"x10.35".

Also, for reference, the iPad Pro 9.7 screen dimensions: 5.82"x7.76".

UPDATE:
The screen size of the new iPad Pro 10.5 is: 6.32"x8.42".

Here's a diagram for visual reference as well. As you can see, the 10.5" iPad Pro is not squarely in between the 9.7" and 12.9" screen sizes, but rather is much closer in size to the model it replaces, the 9.7". This being the case, I still plan to buy the 12.9" model for it's significant increase in screen real estate.

iPad Pro Relative Screen Sizes

iPad Pro Relative Screen Sizes

Post to Instagram from a Mac

Instagram recently announced support for photo uploads via its mobile website. But the desktop version of the site still doesn't offer a way to upload images from a Mac.

Screenshot 2017-05-09 12.05.12.png



I tried changing the user agent in Safari to "Safari — iOS 10 — iPad" and doing so does in fact enable photo uploads from the desktop. And the interface looks nice too!


To enable the ability to change Safari's user agent you'll need to go to the Advanced Preferences pane and check "Show Develop menu in menu bar."

Steve Ballmer's Second Act

Steve Ballmer has built something that sounds really cool and useful: a database that tracks what the government does with our money. The Times write-up makes it sound fascinating:

"Want to know how many police officers are employed in various parts of the country and compare that against crime rates? Want to know how much revenue is brought in from parking tickets and the cost to collect? Want to know what percentage of Americans suffer from diagnosed depression and how much the government spends on it? That’s in there. You can slice the numbers in all sorts of ways.
Mr. Ballmer calls it “the equivalent of a 10-K for government,” referring to the kind of annual filing that companies make."

Ballmer's publishing the data and a report some time today at USAFacts.org
